Beijing KENNDA production of high temperature and high pressure Inductive and Capacitive proximity switches to service high pressure and high temperature environments. These switches have thick stainless steel housings and high density filling epoxy, which can resist 50MPa pressure on the sensing surface. The switches are temperature compensated from -40℃ to +155℃, which guarantees long and stable sensing distance. The complete switch meets IP 68. The switches are available with molded-in cable or with plug-in connector. Besides short circuit and over current protection, the switches have fully reversal connection protection on all of the power supply and output terminals, you can safely connect any pins to any external terminals (within supply voltage) without damage, as well as voltage spikes protection and delay protection for inductive load and freewheeling diode inside. This “full protection” feature is very important for widespread users. The switches are 100% shock pressure aging tested.

KGG18P Series High Pressure Proximity Switches		Inductive proximity sensors for cylinders & valves, Screw mounting, 50MPa  pressure-tight in the sensing surface, Ambient temperature range -40℃ to +125℃. Sensing distance 2.4mm.
KGG12P Series High Pressure Proximity Switches		Inductive proximity sensors for cylinders & valves, Screw mounting, 50MPa  pressure-tight in the sensing surface, Ambient temperature range -40℃ to +125℃. Sensing distance 2mm.
KGG10P Series High Press6ure Proximity Switches		Inductive proximity sensors for cylinders & valves, Screw mounting, 50MPa  pressure-tight in the sensing surface, Ambient temperature range -40℃ to +125℃. Sensing distance 1.5mm.
KGG8P Series High Pressure Proximity Switches		Inductive proximity sensors for cylinders & valves, Screw mounting, 50MPa  pressure-tight in the sensing surface, Ambient temperature range -40℃ to +125℃. Sensing distance 1.5mm.
KGG12F Series High Pressure Proximity Switches		Inductive proximity sensors for cylinders & valves, Flange mounting, 40MPa  pressure-tight in the sensing surface, Ambient temperature range -40℃ to +125℃, Connector case can be rotated and locked within 300°. Sensing distance 2.4mm.
KG100E Series High Strength Proximity Switches		Inductive proximity sensors for harsh environment,  Such as rail way, steel plant, dam etc. Full water proof, High resistance of vibration, Ambient temperature range -40℃ to +150℃. Long sensing distance 40mm.

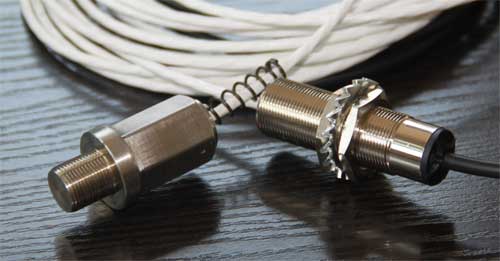

KGW Series High Temperature Proximity Switches		Inductive proximity sensors for high temperature environment, Separate probe and amplifier,  Ambient temperature range of the probe is -40℃ to +200℃.
KRW Series High Temperature Proximity Switches		Capacitive proximity sensors for high temperature environment, Separate probe and amplifier,  Ambient temperature range of the probe is -200℃ ~ +250℃. Adjustable sensing distance.
Stainless Steel Face 270℃ High Temperature  with 50 MPa High Pressure Inductive Proximity Switches		Stainless Steel Face and Housing with 270℃ High Temperature with 5 Meters PTFE Cable with 50 MPa High Pressure Inductive Proximity Switches
